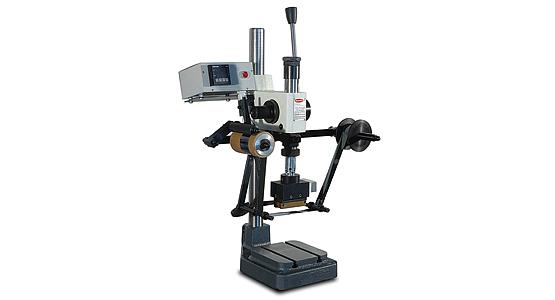

MB20E
Hot marking press, manual bench machine
We will offer this machine if you need to get a complete marking solution. MB20E machine is composed of base and column, heating block (head) with thermostat and an automatic feeder for colour ribbon. You can adjust the temperature up to 932°F (500°C) and press force up to 50 kg manually by a lever.
This is a simple machine for marking individual product and parts. It suits graphics such as logos or symbols. Because of high temperatures and heat inertia of the head, MB20E is not ideal for frequent stamps changing.
We also deliver special types and stamps for hot marking, which are made of brass. Standardly, we deliver nickel-platted stamps in sizes from 1 mm to 5 mm with flat engraving. Details like a width of lines or a milling angle are customer`s choice.
- manually adjustable power
- net weight: 38.5 kg
- the dimension of the workbench: 162 x 162 mm
- the diameter of the fixing hole: 27 mm
- T-cave dimension: 10 mm (according to DIN650 standard)
- maximum ground clearance with no heating block: 385 mm
- maximum ground clearance with a heating block: 275 mm
- Rack / usable stroke: 65 mm
Hot marking press, manual bench machine
We will offer this machine if you need to get a complete marking solution. MB20E machine is composed of base and column, heating block (head) with thermostat and an automatic feeder for colour ribbon. You can adjust the temperature up to 932°F (500°C) and press force up to 50 kg manually by a lever.
This is a simple machine for marking individual product and parts. It suits graphics such as logos or symbols. Because of high temperatures and heat inertia of the head, MB20E is not ideal for frequent stamps changing.
We also deliver special types and stamps for hot marking, which are made of brass. Standardly, we deliver nickel-platted stamps in sizes from 1 mm to 5 mm with flat engraving. Details like a width of lines or a milling angle are customer`s choice.
- manually adjustable power
- net weight: 38.5 kg
- the dimension of the workbench: 162 x 162 mm
- the diameter of the fixing hole: 27 mm
- T-cave dimension: 10 mm (according to DIN650 standard)
- maximum ground clearance with no heating block: 385 mm
- maximum ground clearance with a heating block: 275 mm
- Rack / usable stroke: 65 mm
MB21E
Hot marking press, pneumatic bench machine
An alternative to the manual MB20E is this pneumatically driven machine. MB21E is composed of base and column, heating block (head) mounted to the piston of the cylinder, thermostat and an automatic feeder for colour ribbon. You can adjust the temperature up to 932°F (500°C) and press force up to 150 kg by valve regulation.
As for the previous machine, This MB21E is a simple machine for marking individual product and parts. It suits for graphics such as logos or symbols. Because of high temperatures and heat inertia of the head, MB20E is not ideal for frequent stamps changing.
We also deliver special types and stamps for hot marking, which are made of brass. Standardly, we deliver nickel-platted stamps in sizes from 1 mm to 5 mm with flat engraving. Details like a width of lines or a milling angle are customer`s choice.
- adjustable power: 150 kg
- net weight: 58 kg
- the dimension of the workbench: 170 x 170 mm
- the diameter of the fixing hole: 27 mm
- T-cave dimension: 10 mm (according to DIN650 standard)
- maximum ground clearance with no heating block: 318 mm
- maximum ground clearance with a heating block: 206 mm
- rack / usable stroke: 67 mm
- maximum air pressure: 6 bars
- air consumption for 1 stroke: 2.3 Liters
- air fittings: 1/4-inch
Hot marking press, pneumatic bench machine
An alternative to the manual MB20E is this pneumatically driven machine. MB21E is composed of base and column, heating block (head) mounted to the piston of the cylinder, thermostat and an automatic feeder for colour ribbon. You can adjust the temperature up to 932°F (500°C) and press force up to 150 kg by valve regulation.
As for the previous machine, This MB21E is a simple machine for marking individual product and parts. It suits for graphics such as logos or symbols. Because of high temperatures and heat inertia of the head, MB20E is not ideal for frequent stamps changing.
We also deliver special types and stamps for hot marking, which are made of brass. Standardly, we deliver nickel-platted stamps in sizes from 1 mm to 5 mm with flat engraving. Details like a width of lines or a milling angle are customer`s choice.
- adjustable power: 150 kg
- net weight: 58 kg
- the dimension of the workbench: 170 x 170 mm
- the diameter of the fixing hole: 27 mm
- T-cave dimension: 10 mm (according to DIN650 standard)
- maximum ground clearance with no heating block: 318 mm
- maximum ground clearance with a heating block: 206 mm
- rack / usable stroke: 67 mm
- maximum air pressure: 6 bars
- air consumption for 1 stroke: 2.3 Liters
- air fittings: 1/4-inch

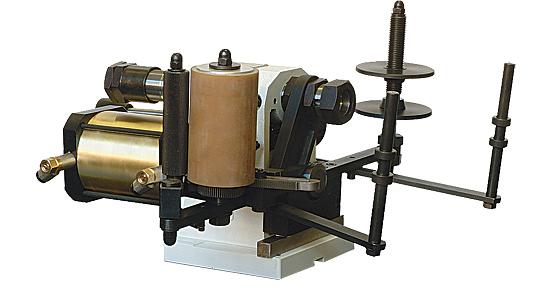

MB21EU
Hot marking pneumatic unit for integration
It is manufactured as compact device actuated pneumatically, primarily designed for integration to automated production lines in any position. A typical example is marking on wood, plastic, leather or on cardboard. If you pressing thru ribbon you will get perfect colour marking – unique shape, texture or reflection.
We also offer accessories such as special stamps and typeholders for them and more.
- adjustable power: 180 kg
- net weight: 27.6 kg
- rack / usable stroke: 67 mm
- maximum air pressure: 6 bars
- air consumption for 1 stroke: 2.3 Liters
- air fittings: 1/4-inch
Hot marking pneumatic unit for integration
It is manufactured as compact device actuated pneumatically, primarily designed for integration to automated production lines in any position. A typical example is marking on wood, plastic, leather or on cardboard. If you pressing thru ribbon you will get perfect colour marking – unique shape, texture or reflection.
We also offer accessories such as special stamps and typeholders for them and more.
- adjustable power: 180 kg
- net weight: 27.6 kg
- rack / usable stroke: 67 mm
- maximum air pressure: 6 bars
- air consumption for 1 stroke: 2.3 Liters
- air fittings: 1/4-inch
Do you need anything similar?
We prepare a solution which fits your business.
