MB41
Manual rolling bench machine
We recommend this machine in the case of smaller parts for marking. In addition, MB41 can be placed on a working desk. Operation and setting of this machine are trivial. Some amount of force has to be developed, that success came. Marking is motored within electric versions.
MB41N
Only cylindric parts with the diameter from 8 to 65 mm can be marked by human force. Parts can by hollow or solid. A S2R auxiliary guiding support has to be used within MB41N type. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB41E
Motored version of previous manual model is a MB41E machine. On the figure bellow, the machine is attached on the special table (TG type), which contains two-buttons for safety power-on and support for rolling, electrically driven.
This model can mark hollow or thin-walled parts of the diameter from 8 to 65 mm using S1R mandrel support. For marking of solid rods is necessary to use S2R support with two rollers.
Manual rolling bench machine
We recommend this machine in the case of smaller parts for marking. In addition, MB41 can be placed on a working desk. Operation and setting of this machine are trivial. Some amount of force has to be developed, that success came. Marking is motored within electric versions.
MB41N
Only cylindric parts with the diameter from 8 to 65 mm can be marked by human force. Parts can by hollow or solid. A S2R auxiliary guiding support has to be used within MB41N type. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB41E
Motored version of previous manual model is a MB41E machine. On the figure bellow, the machine is attached on the special table (TG type), which contains two-buttons for safety power-on and support for rolling, electrically driven.
This model can mark hollow or thin-walled parts of the diameter from 8 to 65 mm using S1R mandrel support. For marking of solid rods is necessary to use S2R support with two rollers.
MB71
Marking of average sized parts
Rolling machine MB71 is designed for marking of cylindric parts with the diameter up to 110 mm. Based on the demands, machine can be delivered as one of the several possible modifications.
All machines have common basic properties, differs only by the driving of rolling support and if a pneumatic downforce is installed.
MB71N
Only cylindric parts with the diameter from 8 to 65 mm can be marked by human force. Parts can by hollow or solid. For marking of solid rods is necessary to use S2R support with two rollers. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB71E
Motored version of previous manual model is a MB71E machine. On the figure above, the machine is attached on the special table (TG type), which contains two-buttons for safety power-on and support for rolling, electrically driven.
This model can mark hollow or thin-walled cylindric parts up to a maximum of 110 mm diameter. For marking of solid rods is necessary to use S2R support with two rollers. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB71EP
This model is a variant of previous electric model. The main difference of both is that in the bootom part of MB71EP is the pneumatic downforce installed. This mechanism pushing component for marking against upper part which caused deeper and more precise marking. All operations are controlled by PLC.
MB71CE

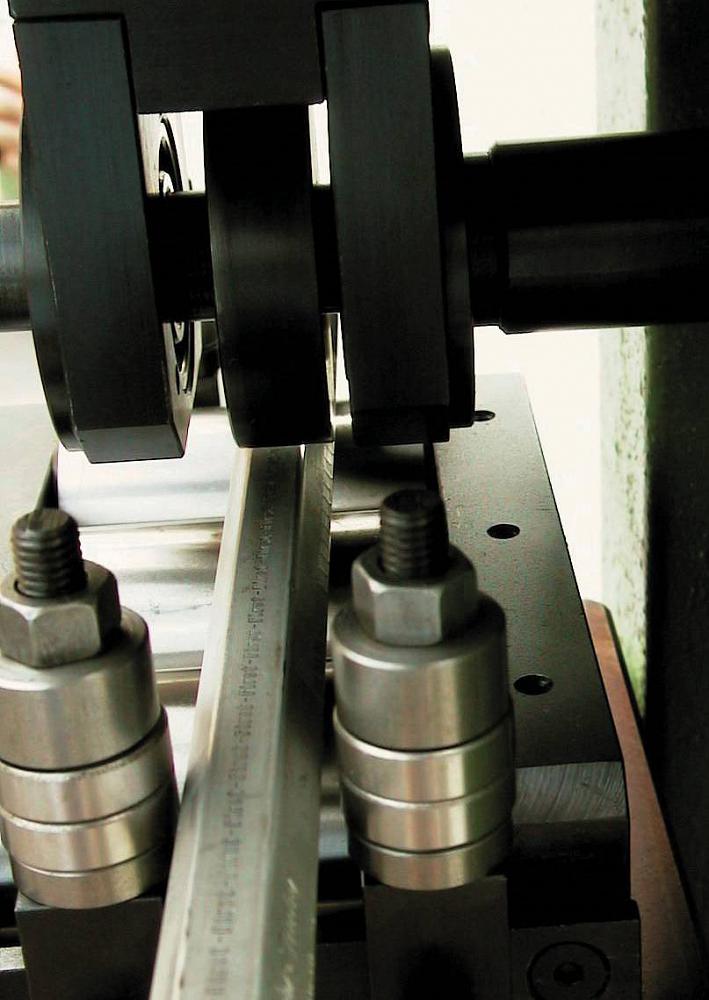

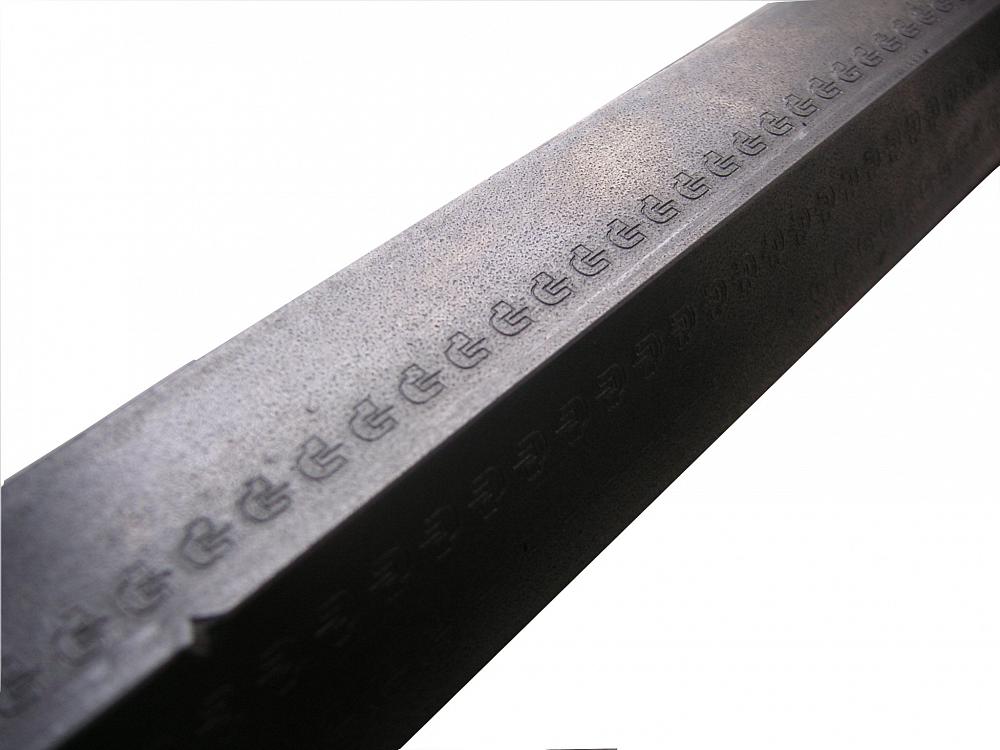

For continuous, repeated marking of bars, hexagonals, tubes and other profiled material, the MB71CE machine is a best solution. The symbols, logos or text are rolled into the material using a marking roller (circular typeholder) of 60 mm diameter. Maximal length of text string is 60 mm. Marking capacity is 6 meters per minute.
Marking of average sized parts
Rolling machine MB71 is designed for marking of cylindric parts with the diameter up to 110 mm. Based on the demands, machine can be delivered as one of the several possible modifications.
All machines have common basic properties, differs only by the driving of rolling support and if a pneumatic downforce is installed.
MB71N
Only cylindric parts with the diameter from 8 to 65 mm can be marked by human force. Parts can by hollow or solid. For marking of solid rods is necessary to use S2R support with two rollers. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB71E
Motored version of previous manual model is a MB71E machine. On the figure above, the machine is attached on the special table (TG type), which contains two-buttons for safety power-on and support for rolling, electrically driven.
This model can mark hollow or thin-walled cylindric parts up to a maximum of 110 mm diameter. For marking of solid rods is necessary to use S2R support with two rollers. For marking of hollow parts, we recommend to use mandrel support S1R. Other accessories are linear typeholders and types.
MB71EP
This model is a variant of previous electric model. The main difference of both is that in the bootom part of MB71EP is the pneumatic downforce installed. This mechanism pushing component for marking against upper part which caused deeper and more precise marking. All operations are controlled by PLC.
MB71CE
For continuous, repeated marking of bars, hexagonals, tubes and other profiled material, the MB71CE machine is a best solution. The symbols, logos or text are rolled into the material using a marking roller (circular typeholder) of 60 mm diameter. Maximal length of text string is 60 mm. Marking capacity is 6 meters per minute.
MB76
Marking of big parts
MB76E

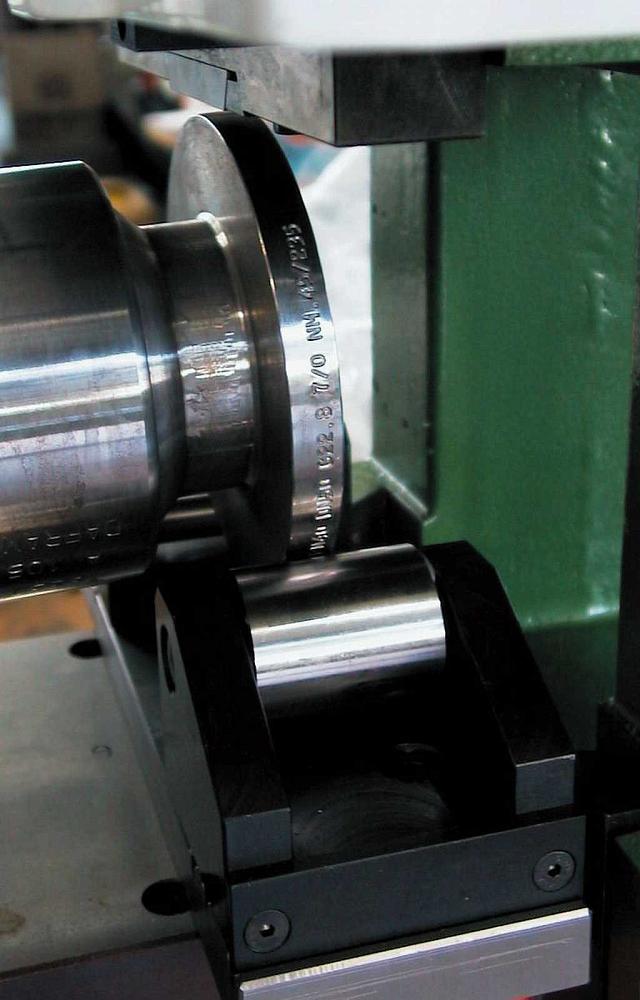

This type of rolling machine is designed for marking of big cylindric parts such as steel discs mounted in vertical position. MB76E can mark parts up to a maximumum of 1000 mm diameter. Maximal length of text string is 180 mm. Output can be doubled or tripled by using bigger multiline linear typeholder.
Marked part is pushed against the typeholder by spring washers. Washers can be preset on needed strength. Loading of parts for marking is manual. The pneumatic version (EP) also has a vertical approach stroke of 22 mm maximum, to feed forward the part to the marking head.
The machine contains two-buttons for safety power-on. Other accessories are linear typeholders and types.
MB76EP90°

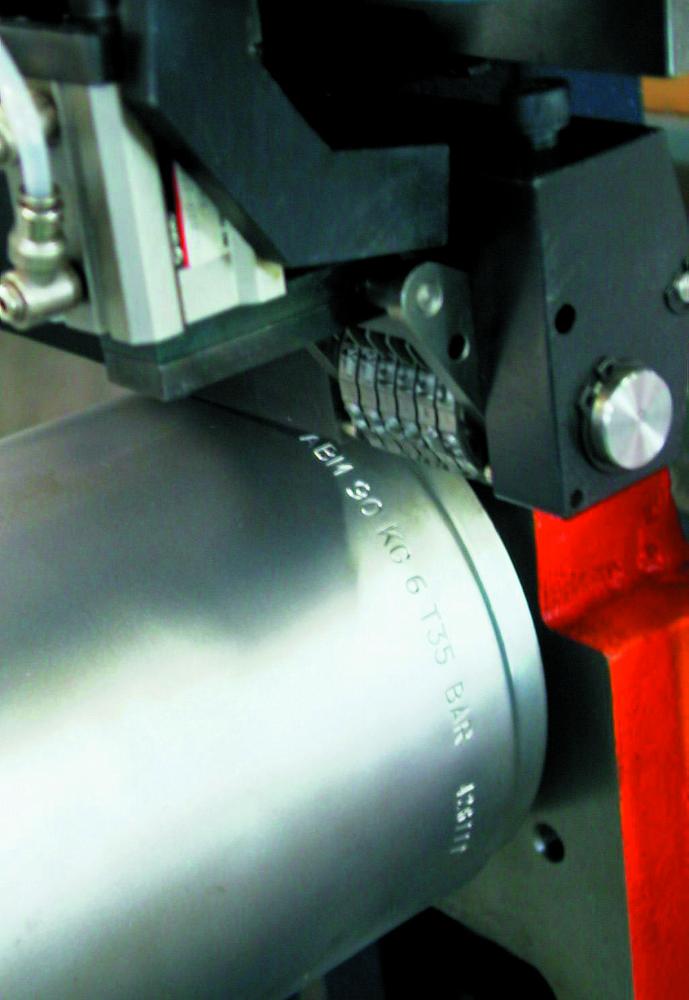

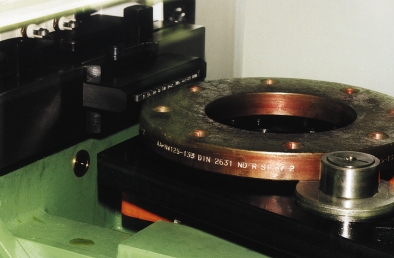

Horizontal rolling machines are designed for marking of cylindrical parts circumferentially – see figure bellow. Parts can have 650 mm in diameter. Maximal length of text string is 180 mm. Output can be doubled or tripled by using bigger multiline linear typeholder.
Marked part is pushed against the typeholder by spring washers. Washers can be preset on needed strength. Loading of parts for marking is manual. The pneumatic version (EP) also has a horizontal approach stroke of 22 mm maximum, to feed forward the part to the marking head.
The machine contains two-buttons for safety power-on. Other accessories are linear typeholders and types.
Marking of big parts
MB76E
This type of rolling machine is designed for marking of big cylindric parts such as steel discs mounted in vertical position. MB76E can mark parts up to a maximumum of 1000 mm diameter. Maximal length of text string is 180 mm. Output can be doubled or tripled by using bigger multiline linear typeholder.
Marked part is pushed against the typeholder by spring washers. Washers can be preset on needed strength. Loading of parts for marking is manual. The pneumatic version (EP) also has a vertical approach stroke of 22 mm maximum, to feed forward the part to the marking head.
The machine contains two-buttons for safety power-on. Other accessories are linear typeholders and types.
MB76EP90°
Horizontal rolling machines are designed for marking of cylindrical parts circumferentially – see figure bellow. Parts can have 650 mm in diameter. Maximal length of text string is 180 mm. Output can be doubled or tripled by using bigger multiline linear typeholder.
Marked part is pushed against the typeholder by spring washers. Washers can be preset on needed strength. Loading of parts for marking is manual. The pneumatic version (EP) also has a horizontal approach stroke of 22 mm maximum, to feed forward the part to the marking head.
The machine contains two-buttons for safety power-on. Other accessories are linear typeholders and types.
